SMEW

MODEl NO. ISS 12

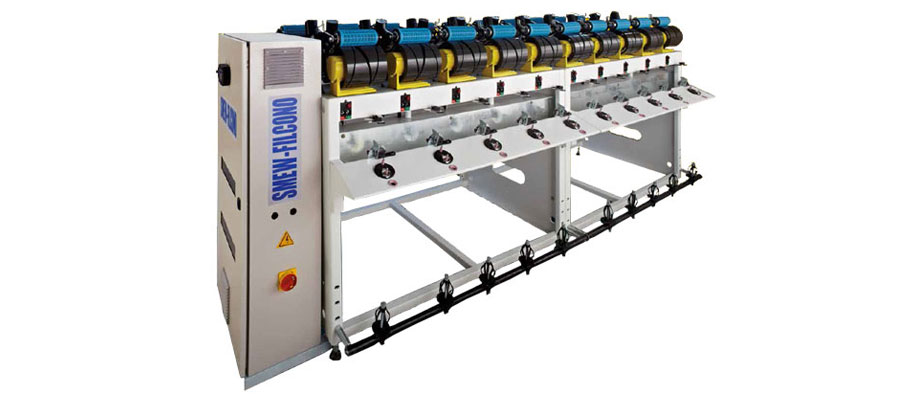

Integrated space saving model with samllest spindle pitch

The design of the machine saves 35% space as compared to similar type of soft winding machines

Special large diameter,precison hard aluminium anodized drum with 1.5 Turns.

Model : Iss 12 DTC (Digital Tension Control System)

Main Features

Machine arrangement - single/double sided
Max. Spindles - 160(in multiples of 10)
Installed power per spindle - 0.075Kw
Input power - 230/380/400/440v AC Three phase
Individual motor for every spindle
Stepless speed variation from 0 to 1400 mpm by frequency inverter

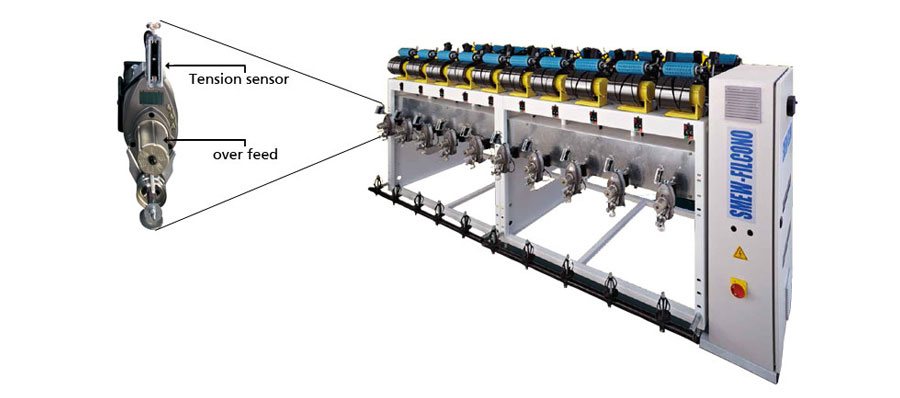

DIGITAL TENSION CONTROL SYSTEM WITH REAL TIME TENSION FEEDBACK AND
OVER FEED FOR ACCURATE TENSION CONTROL UPTO 0.1 GM RESOLUTION

Hard aluminium anodized drum of 1.5 turns with large diameter
Electronic anti patterning
Double sided package holder suitable dye tubes/cones
Maximum take-up package - 300mm

Optional Extras

Length measuring system
Air / Aqua Splicer
Over head travelling cleaner

Model : Iss 12

Main Features

Machine arrangement - single/double sided
Max. Spindles - 160(in multiples of 10)
Installed power per spindle - 0.075Kw
Input power - 230/380/400/440v ac three phase
Individual motor for every spindle
Stepless speed variation from 0 to 1200 mpm by frequency inverter
Yarn sensing by electronic non contact type yarn detector
Hard alumimiun anodized drum of 1.5 turns with large diameter
Adujstable circular slub catcher
Electonic anti patterning
Double sided pacakage holder suitable dye tubes/cones
Maximum take-up package - 300mm

Optional Extras

Length measuring system
Air / Aqua Splicer
Over head travelling cleaner

Machine dimensions in mm

Spindles	30	40	50	60	80	100	120	140	160
Length (mm)	4200	5600	7000	8400	11200	14000	16800	19600	22400
Width (mm)	1150	1150	1150	1150	1150	1150	1150	1150	1150

Machine dimensions in inches

Spindles	30	40	50	60	80	100	120	140	160
Length (inch)	165	220	276	331	441	551	661	772	882
Width (inch)	46	46	46	46	46	46	46	46	46
