SMEW

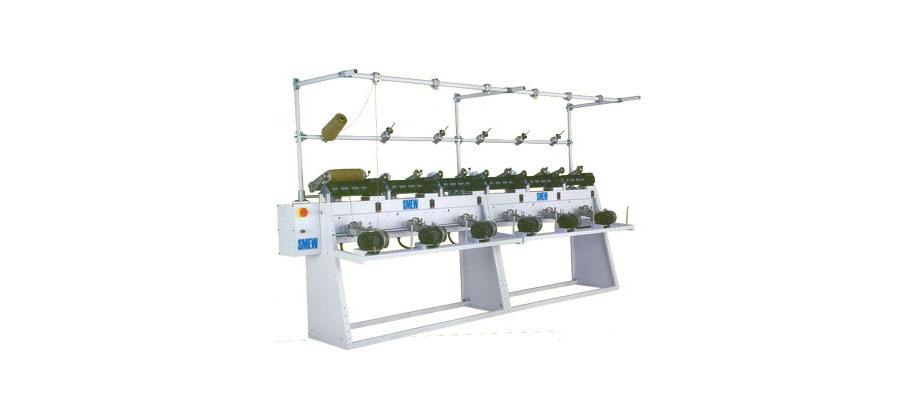

MODEl NO. F.R.T.CH

Main Features


  • Machine arrangement - single/double sided
  • Max. Spindles - 160(in multiples of 10)
  • Installed power per spindle - 0.075Kw
  • Input power - 230/380/400/440v AC Three phase
  • Individual motor for every spindle
  • Step less speed variation from 0 to 1200 mpm by frequency inverter
  • Yarn sensing by electronic non contact type yarn detector
  • Auto stop on yarn breakage
  • Traverse - 8"(200 mm) or 10"(250 mm)
  • Pre-feeding motor to reduce tension variations and to produce soft or hard final package
  • Double disc tensioning
  • Circular slub catcher
  • Electronic anti patterning
  • Double sided package holder suitable dye tubes/cones
  • Maximum take-up package - 350mm

Optional Extras


  • Length measuring system
  • Over head travelling cleaner
  • Waxing
